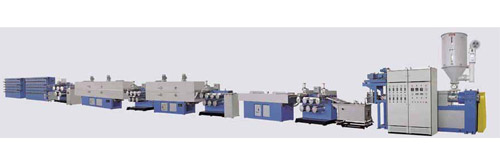

pa6, pa66 nylon monofilament unit
pa6, pa66 nylon monofilament unit

  nylon monofilament round wire unit to introduce and absorb advanced technology from germany, plc program control, frequency control and other advanced technologies. the main electrical components are used foreign high-quality products; extruder screw barrel adopts special processing 38crmoaia quality steel; cold water tank made of high quality stainless steel plate, five roller drafting machine gear box, monofilament drawing and stereotypes adopt advanced hot air oven, so that the unit's main technical indicators reached the international advanced level, its fast, high yield, low energy consumption, good forming quality of the monofilament. the entire unit compact structure, attractive appearance, smooth running, flexible and reliable control, sophisticated manufacturing technology, easy to operate, safe and reliable.

technical parameters:

 type/parameter

syl-n series nylon monofilament unit

syl-m65×30-450

syl-n65×30-650

item

parameter

extruder

a) raw material:pa

b) dia.of monfilament:φ0.18-φ0.35㎜

screw dia

φ65mm

ratio of l/d

30:1

material of screw and cylinder

38crmoaia

rotate speed of screw

25-100rpm

spinning die

1set

number o holes

120 pcs

150pcs

shapping unit

single stretching unit

winder

132spindles

156spindles

winding size and type

φ46×500mm,olivary form(optional)

system capacity(about)

194kw

210kw

overall size(l×w×h)

40200×2300×1970mm

42300×2420×1970mm

weight

28t

29t

specification and dimensions are subject to change without prior notice.
