moved picture on your mouse, magnifying the effect of visible product
equipment advantages:
1 ．unwinding unit: adopt double, constant tension and auto edge rectification unwinding unit.
2. extrusion and lamination unit: combine the extrusion and lamination parts feeely, to realize the three-dimensional adjustment.
3. edge and breadth trim unit: adopt servo system to control the edge and breadth trim systems, to ensure the high precision and stable operation．
4. winding unit: the friction and central winding，two winding forms are alternative.
5. easy and convenient control system, to make sure high safety and good perormance in low speed position.
6. apply to coat various woven sack, flexible intermediate bulk containers(fibc's), flat container fabric(u-panel fibc), tarpaulin, geo-textiles, cement bag and som other woven fabric.
 |
 |
 |
 |
 |
 |

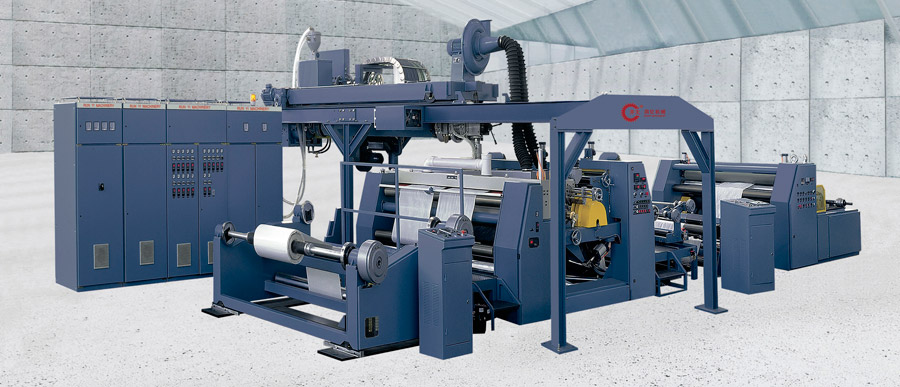

finished case:
 |
 |
 |

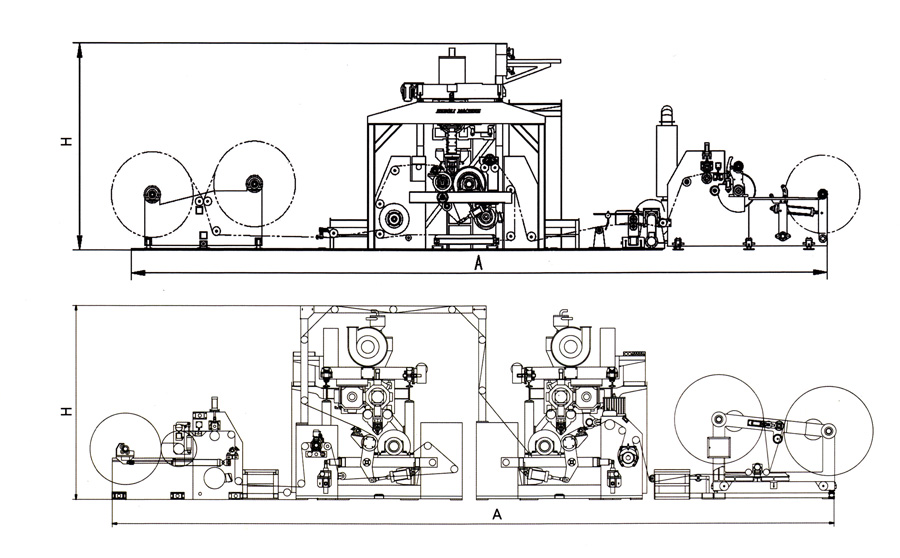

product structure diagram:
technical parameters:
|
screw diameter(mm) |
φ65 |
φ90 |
φ100 |
φ100 |
φ110 |
φ120 |
φ150 |
|
max.extrusion volume(kg/h) |
180 |
240 |
280 |
320 |
350 |
550 |
825 |
|
working width(mm) |
800(double t-die) |
1500 |
2200 |
2400 |
2400(double t-die) |
4000 |
6000 |
|
max.diameter of winding and unwinding roll(mm) |
φ1200 |
φ1200 |
φ1200 |
φ1200 |
φ1200 |
φ1000 |
φ1000 |
|
max.line speed(m/min) |
160 |
160 |
140 |
120 |
120 |
80 |
60 |
|
laminating thickness(mm) |
0.015-0.08 |
0.015-0.08 |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
|
dimensions(l×w×h)(mm) |
12300×9000×3000 |
11000×9000×3200 |
11000×9500×3200 |
11000×10000×3200 |
14300×10000×3000 |
11000×12000×3200 |
12000×14000×3200 |
|
weight(t)
|
30
|
28
|
32
|
35
|
40
|
40
|
55
|
|
system installation power(kw)
|
290
|
160
|
200
|
240
|
330
|
310
|
395
|
|
normal electricity consumption(kw) |
205
|
110 |
140 |
170 |
230 |
217 |
280 |
specification and dimensions are subject to change without prior notice.
