moved picture on your mouse, magnifying the effect of visible product
features:
1 ．electrical control unit: adopt the european famous-brand processor control (pc) to monitor and control the whole line centrally and fully,
bring the easier operation and more stability. (option)
2. slitting unit: adopt thenew-typeadjustable strucure, prolong the blade using time.
3. integrated holding unit: renew the previous film take-off and holding structure, meet the higher line speed requirement.
4.electric component unit: adopt world-famous brand product with international guarantee.
5. apple to produce the pp, hdpe normal tape, fibrillated tape, folded tape and some other flat-type tape with various specifications.
 |
 |
 |
 |
 |
 |
high speed tape stretching line:
| material loading● |
hot air oven,length 6 m○ |
|
auto vacuum material-feeding loader● |
|
|
film take-off● |
melt pump○ |
|
with multi drives and moisture absorption unit● |
|
|
automatic filter● |
static mixer○ |
|
flat die● |
screw type loader/mixing unit○ |
|
water quench tank● |
flat tape fibrilator unit○ |
|
slitting unit● |
flat tape fibrilator unit○ |
|
integrated holding unit● |
film thickness gauge and control system○ |
|
edge trim recycle and reefed system● |
industrial process computer/eurpe○ |
|
stretching section with 6 godets, incl.heating unit● |
multi stretching and annealing section○ |
|
vacuum tape extraction incl.collection box● |
|
standard● option○
finished case:
 |
 |
 |
 |

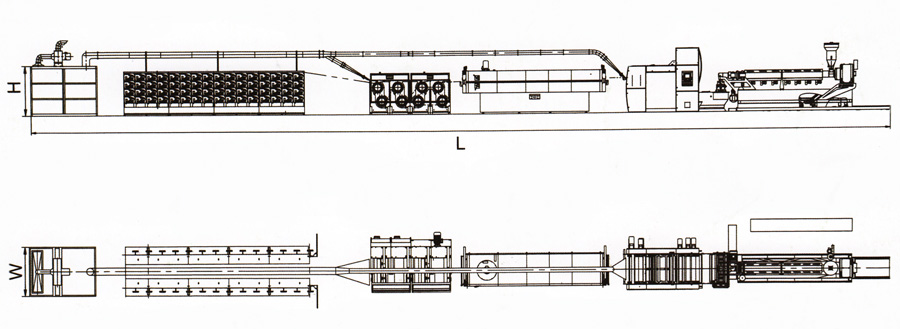

product structure diagram:
technical parameters:
|
item |
sjpl-g100×33-800 |
sjpl-g110×33-1100 |
sjpl-g120×33-1300 |
sjpl-g130×33-1500 |
|
max.extrusion volume |
330kg/h |
400kg/h |
500kg/h |
600kg/h |
|
screw dia |
φ100mm |
φ110mm |
φ120mm |
φ130mm |
|
ratio of l/d |
33:1 |
33:1 |
33:1 |
33:1 |
|
rotate speed of screw |
20-120r/min |
|||
|
length of mold lip |
800mm |
1100mm |
1300mm |
1500mm |
|
max.production speed |
450m/min |
|||
|
flat yarm fibre scope |
60-200tex |
|||
|
drwing of winde |
4-10 |
|||
| winding number |
132spindles |
180spindles |
216spindles |
252spindles |
specification and dimensions are subject to change without prior notice.
