high-speed automatic cheb machine
high-speed automatic cheb machine

high-speed automatic cheb machine

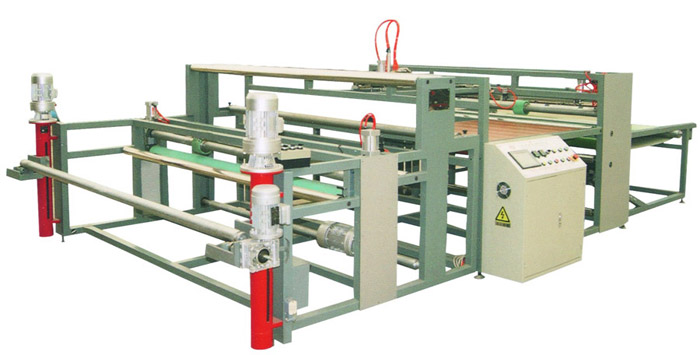

  container cylinder unit is mainly used for large cloth, pieces of cloth cut, maximum cutting width of 2300mm. because the unit is stupid hot knife cut cloth does not appear after cutting loose wire, wire run phenomenon. easy and convenient operation, this unit have a precise electronic control system, the user can set the working length according to their needs.

technical parameters:

type

1m-2300

3m-1500

cloth roll diameter

1200mm

1200mm

cloth roll width

2300mm

1500mm



cheb type

level

level

cross

cross

tangentially

tangentially



cloth width

level500-2300mm

level500-1500mm

cross200-600mm

cross200-600mm

tangentially200-590mm

tangentially200-590mm

cheb speed (production speed)

10-20pcs/min

10-20pcs/min

accuracy

±1%

±1%

main motor power

1.1kw×2

1.1kw×2

gas source

0.6mpa

0.6mpa

total power

9kw

8kw

size

7×2.8×1.4m

7×1.8×1.4m
