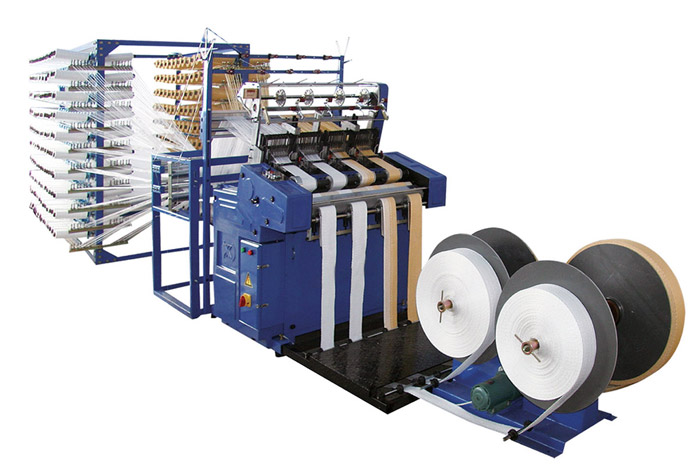

high-speed needle loom
high-speed needle loom
technical parameters:
|
ribbon number |
4 |
2 |
|
webbing width |
20-70 30-70 |
maximum110 |
|
web speed |
100-150 80-125 |
80-125 |
|
weight range |
≤35 ≤60 |
≤90 |
|
the volume of the first |
600 |
520 |
|
diameter line name and specifications |
polypropylene wire3300±100 |
polypropylene wire3300±100 |
|
weft name and specifications |
polypropylene filament800-1000 |
polypropylene filament800-1000 |
|
lock sideline name specification |
polypropylene filament600-800 |
polypropylene filament600-800 |
|
main motor power |
1.5kw |
1.1 |
|
winder torque motors |
1.2kw |
0.8 |
|
overall dimensions |
6880×1680×1980 |
6280×1450×1900 |
|
total weight |
980kg |
780kg |
